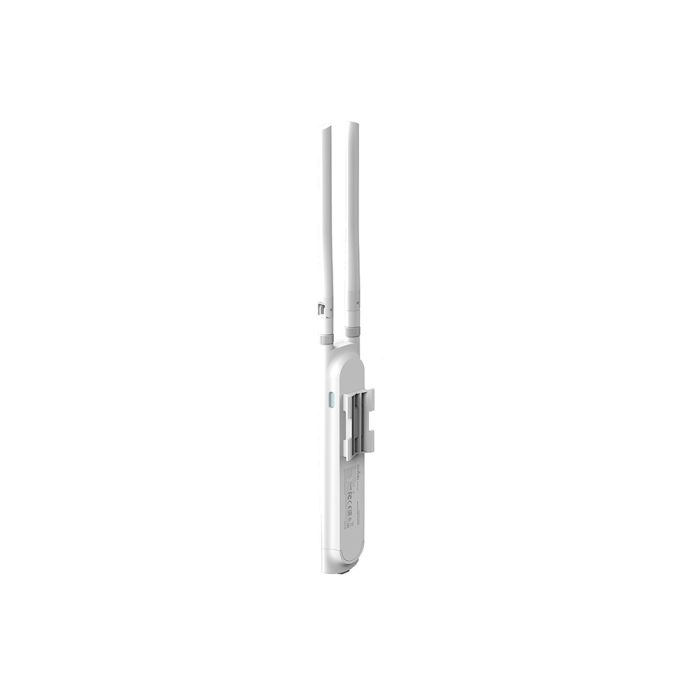

Name: TP-LINK ACCESS POINT AC1200, WIRELESS OUTDOOR POE
SKU: EAP225-OUTDOOR
Availability: InStock

TP-LINK ACCESS POINT AC1200, WIRELESS OUTDOOR POE

€94.72

802.3af/A PoE, 24V Passive PoE, 2.4GHz: 2 – 3dBi, 5GHz: 2 – 4dBi, IEEE 802.11a/b/g/n/ac, 2.4GHz, 5GHz

In stock

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Wi-Fi Multimedia (WMM)/(WME)	Yes
Transmitting power (FCC)	22 dBm
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE)	Yes
Output voltage	24 V
Placement	Pole, Wall
Product colour	White
Reset button	Yes
Antenna type	External
Antenna direction type	Omni-directional
Antennas quantity	2
Width	215 mm
Depth	46 mm
Height	27 mm
Package width	140 mm
Package depth	270 mm
Package height	100 mm
Package weight	640 g
AC adapter included	Yes
Quick start guide	Yes
Operating relative humidity (H-H)	10 – 90%
Operating temperature (T-T)	-30 – 70 °C
Storage temperature (T-T)	-40 – 70 °C
Storage relative humidity (H-H)	5 – 90%
Sustainability compliance	Yes
Harmonized System (HS) code	85176990
Frequency band	2.4 – 5 GHz
Web-based management	Yes
Power consumption (typical)	10.5 W
Antenna features	Detachable antenna
Antenna gain level (max)	4 dBi
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
MIMO	Yes
MIMO type	Multi User MIMO
International Protection (IP) code	IP65
Mounting kit	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Number of SSID supported	16
Access Control List (ACL)	Yes
Maximum data transfer rate (5 GHz)	867 Mbit/s
VLAN support	Yes
Band steering	Yes
BeamForming	Yes
Transmitting power (CE)	27 dBm
Product family	Omada
Airtime Fairness (ATF)	Yes
Syslog	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Virtual LAN features	VLAN mapping
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Quantity per pack	1 pc(s)

Click to enlarge

Back to products

Compare

Add to wishlist

SKU: EAP225-OUTDOOR Categories: ACCESS POINTS, NETWORKING & UPS

TP-LINK

Description

TP-LINK ACCESS POINT AC1200, WIRELESS OUTDOOR POE, DUAL BAND, 1X GIGABIT PORTS, 2 X EXTERNAL ANTENNAS, MU-MIMO, BAND STEERING, LOAD BALANCE, CAPTIVE PORTAL, OMADA APP

Additional information

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Wi-Fi Multimedia (WMM)/(WME)	Yes
Transmitting power (FCC)	22 dBm
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE)	Yes
Output voltage	24 V
Placement	Pole, Wall
Product colour	White
Reset button	Yes
Antenna type	External
Antenna direction type	Omni-directional
Antennas quantity	2
Width	215 mm
Depth	46 mm
Height	27 mm
Package width	140 mm
Package depth	270 mm
Package height	100 mm
Package weight	640 g
AC adapter included	Yes
Quick start guide	Yes
Operating relative humidity (H-H)	10 – 90%
Operating temperature (T-T)	-30 – 70 °C
Storage temperature (T-T)	-40 – 70 °C
Storage relative humidity (H-H)	5 – 90%
Sustainability compliance	Yes
Harmonized System (HS) code	85176990
Frequency band	2.4 – 5 GHz
Web-based management	Yes
Power consumption (typical)	10.5 W
Antenna features	Detachable antenna
Antenna gain level (max)	4 dBi
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
MIMO	Yes
MIMO type	Multi User MIMO
International Protection (IP) code	IP65
Mounting kit	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Number of SSID supported	16
Access Control List (ACL)	Yes
Maximum data transfer rate (5 GHz)	867 Mbit/s
VLAN support	Yes
Band steering	Yes
BeamForming	Yes
Transmitting power (CE)	27 dBm
Product family	Omada
Airtime Fairness (ATF)	Yes
Syslog	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Virtual LAN features	VLAN mapping
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Quantity per pack	1 pc(s)
